CH040936
Bearing Oil Seal Install Tool

CH040937
Bearing Install Tool

CH040938
Oil Seal Install Tool

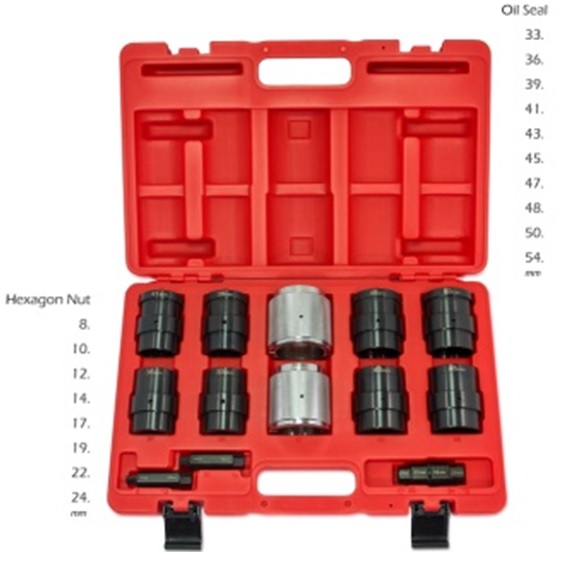

CH040913-3
Front Suspension Oil Seal Tool

CH040913
Suspension Tool

CH152055

Steering Stem Bearing Race Removal Tool

* It provides a simple way to remove the bearing race on a steering stem.

* It works on most all stems.

* Opening sizeˇG30mm ~ 68mm

Instruction:

* Insert it into the stem.

* Open it up until it is tight against the stem.

* From the other end tap the tool out the lip on the tool. (as shown in figure)

* And then, it will catch the race and pull it through.

CH040966
Front Suspension Tool
Range: 35-47mm

CH1520122

Steering stem nut tool <For Ducati>

* It enables you to correctly torque the steering stem nut.

* It is designed to be used with a 3/8 inch drive.

* It fits all 4V Superbikes, Multistrada, Hypermotard and other models with the large diameter steering stem nut.

* The rubber cushion design allows you without damaging the steering stem nut in the process of removal and installation.

* MaterialˇG6061-T6 aluminum

Note:

* Remove the upper triple clamp from the steering stem nut and the fork tubes before loosening or tightening your steering stem nut.

* The torque procedure is critical and must be completed correctly, make reference to the service manual for your bike model before use or take it to a qualified repair shop for installation.

ˇ@

CH040943
Gear Nut Tool

CH152044

Swing arm Bearing Tool

* Designed for installation of the swing arm bearings on Honda, Suzuki, Kawasaki and Yamaha from 1990 through 2000.

* This tool provides 3 necessary drivers to fit the main swing arm needle bearings.

* Allows user to push bearing into the swing arm easily.

Parts list:
ˇ@

CH040909
Steering Bearing Attachment Tool

CH040909-N
Steering Attachment Tool

CH040909-5
Steering Nut Tool

CH040909-51, 4teeth 30mm
CH040909-52, 4teeth 32mm
CH040909-53, 4teeth 34mm
CH040909-54, 4teeth 38mm
CH040909-55, 4teeth 41mm
CH040909-56, 3teeth
CH040909-57, 6teeth
CH040909-58, 8 point 32mm
CH040909-59, long type 6 points 32mm

CH040922
Steering Nut Tool

CH040964
Steering Nut Tool
6 Gear

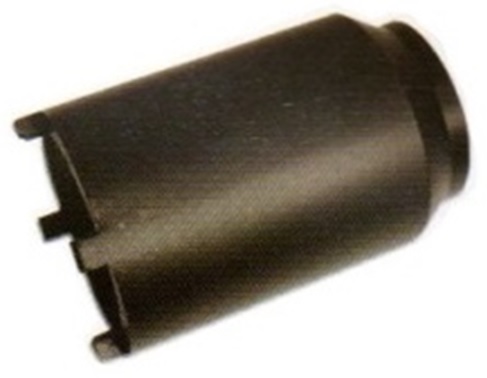

CH040964-4
Steering Nut Tool

4 Gear

Steering Bearing Nut Tool

CH040956,  size:dia.30 x 175L
CH040956-34,  size:dia.34 x 175L
CH040956-38,  size:dia.38 x 175L

Steering Bearing Shock Tool
CH040963

Including:
*1pc steering bearing shock:500L
*4pcs attachment:dia.24,27,30,31

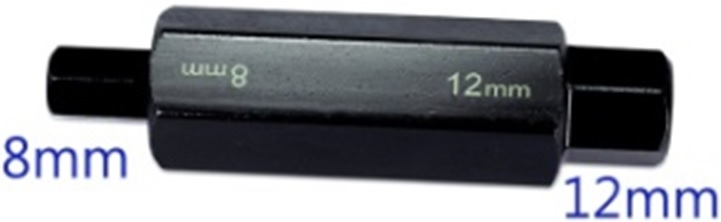

CH040972-0812
Front Suspension Nut Tool

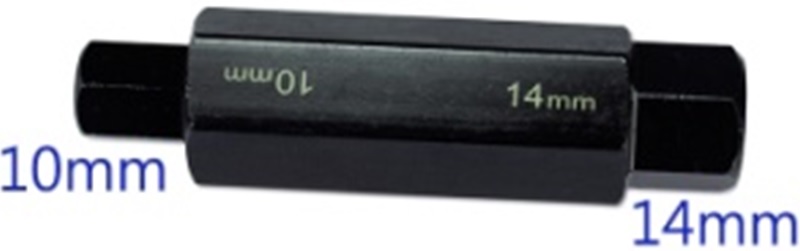

CH040972-1014
Front Suspension Nut Tool

Item No.: CH080775
Hex Axle Tool

Fit internal hex on many late model sport bike and some off-road applications.
Size : 17,19,22and 24mm.3/8ˇ¨ Dr. square drive
Material:SCM440

CH0915223-1
Hex Axle Tool

Fit internal hex on many late model sportbikes and some off-road applications.
Size : 17,19,22and 24mm.3/8ˇ¨ Dr. square drive

CH080775-1
Hex Axle Tool

Description:
* Fit internal hex on many late model sportbikes and some off-road applications.
* Size : 14,12,17,19,22and 24mm.

CH1520149

Axle Nut Wrench

* Ideal tool to install and remove front wheel axles and swing arm pivot shafts.

* Double sided 19 mm and 24 mm hex.

* It also provides a 3/8ˇ¨ square drive hole in the handle for easy torque adjustments.

* Works on Honda, Kawasaki, Suzuki, and Yamaha.

CH040908
Hook Wrench

Size: dia. 42 x 40

CH040910
Hook Wrench

Size: dia. 60 x 65

CH040958
Steering Bearing Nut Wrench

Size:53mm

CH040958-46
Steering Bearing Nut Wrench

Size:46mm

CH152054

Aluminum Vise Insert

It is an essential tool for every mechanicˇ¦s workbench.
Aluminum jaws provide three machined openings to hold
5/16ˇ¨ to 9/16ˇ¨ (7mm to 15mm) axles for easy wheel hub and
pedal adjustments securely without damage axle threads.
The bridge spring keeps the jaws aligned and allows the tool
to automatically open.
