CH152060

Flywheel Puller <For Motorcycles>

M33 x 1.5 R.H. Internal Thread
Applications¡G
KTM¡G625 SMC(2006)¡B640 LC4 Adventure(2004~2007)¡B640 LC4E(2001)¡B690 RFR(2008)
Suzuki¡GGSXR 1000(2001~2008)¡BGSXR 600(2001~2009)¡BGSX R750 (2000~2008)
Yamaha¡GWR 450F(2004~2008)¡BYFZ 450(2004~2009)

CH152064

Flywheel Puller <For Suzuki>

M50x1.5 RH Internal Thread
Includes crankshaft protector M16xP1.5

CH152070
Flywheel Puller

M24x1.5 right hand internal threads
Puller includes 12mm crankshaft protector cap.

Applications¡G
Honda¡GCRF 150R /150RB 07-08¡BCRF 250R/250X 04-08¡BCRF 450R 02-08
Kawasaki¡GKX 250F 04-08¡BKX 450F 06-08
Suzuki¡GRMZ 250 04-07¡BRMZ 450 05-07
Yamaha¡GYZ 450F 06-08

CH152071
Flywheel Puller <For KTM 4-Stroke>

M26x1.0 right hand internal threads
Puller includes 12mm shaft protector cap.
Applications¡GKTM 250 RFS, 250SX-F, 400, 450, 520, 525
Note¡GIt is not applicable to older models with Motoplat ignition systems

CH152072
Flywheel Puller <For Yamaha>

It fits Yamaha WR 250F 2003 ¡V 2008 and WR 450F 2003.
M30x1.0 right hand internal threads

Flywheel Puller Tool

CH040949-1, 32.3mm x P1.5
CH040949-2, 34mm x P1.5
CH040949-3, 35mm x P1.5

Flywheel Puller Tool

CH040970-28R,  28MxP.1.0 (R.)
CH040970-27L,  27M xP.1.0 (L.)
CH040970-24R,  24M xP.1.0 (R.)
CH040970-16R,  16M xP.1.5 (R.)
CH040970-14R,  14M xP.1.5 (R.)

Flywheel Puller Tool

CH040970-30R,  30MxP.1.5 (R.)
CH040970-2226R,  22M xP.1.0 (R.), 26M x P1.5 (L.)
CH040970-2427RL,  24M xP.1.0 (R.), 27M x P1.0 (L.)
CH040970-28R,  28M xP.1.0 (R.)

CH152066
Combination Flywheel Puller Driver Set

10 pieces kit provides 15 different applications,
sizes as follows¡G
M14x1.5, M16x1.5, M18x1.5, M19x1.0, M20x1.0, M27x1.25,
M22x1.0, M25x1.5, M22x1.5, M26x1.5, M24x1.0, M27x1.0, M26x1.0, M28x1.0, M28x1.5
Except for M27X1.0, all applications have right hand threads.

CH040932-2

Flywheel Puller Tool

*10M x P1.25 (R.)
*14,16,18M x P1.5 (R.)

CH040932-3

Flywheel Puller Tool

*24M x P1.0(R.)
*27M x P1.0(L.)

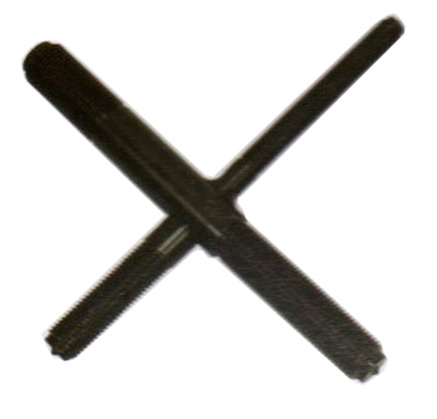

CH040932-3A

Flywheel Puller Tool

*10M x P1.25 (R.)
*14,16,18M x P1.5 (R.)

ITEM NO.: CH080710
¡@

FLYWHEEL PULLER

¡@

Contents:

The specially designed tool for the standard AC Flywheel wheel ring.  It's available for all sizes of the Flywheel wheel rings.  There're 6 sizes for the Flywheel wheel rings.  Since the Flywheel products are the Taper Lock types, they can't do disengaged except for applying the above special designed tool.

CH152028

27mm Motorcycle Flywheel / Mag Puller

CH040932

Flywheel Puller Tool

90 dia. X 6 dia.

CH040932-1

Flywheel Puller Tool

100 dia. X 8 dia.

CH152033
Flywheel Puller

Puller kit designed to pull magneto flywheel or starter gear.
Includes three 6 x 25 mm and three 8 x 40 mm bolts.

Applications¡G

Kawasaki Jet Ski 300/440/550,
Yamaha WR250F 01-02 and WR400F Flywheel.

¡@

CH152059

Flywheel Puller <For KTM>

It is ideal tool to remove the rotor and primary gear
on 2002 - 2008 KTM 50.
It provides 4mm(M4 x 0.7 x 30L, 35L), 5mm(M5 x 0.8 x 40L),
and 6mm (M6 x 1.0 x 40L) screws each size have two pieces.

CH152068
Flywheel Holding Tool
<For Personal Watercrafts>

Fits Yamaha all 760, all 800, all 1200 135 and 155 hp.

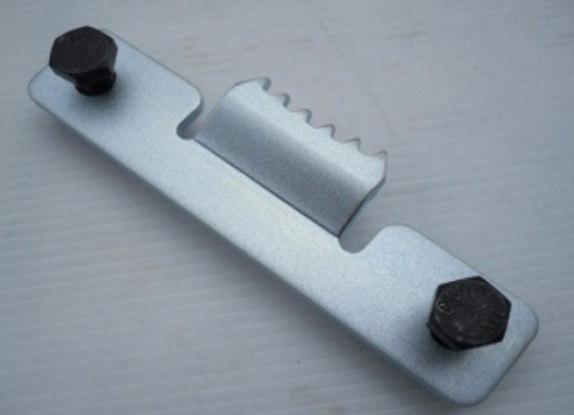

CH152069
Flywheel Holding Tool
<For Personal Watercrafts>

Fits Yamaha all 1100.
