CH152031

Fork Cap Wrench
Designed to remove the fork caps and adjust compression
dampening on late-model CRs. and RMs. 46mm & 50mm.

Multi-Valve
These tools are purpose to save time necessary when replacing
valves in modern 16 – to 20 – valve heads.

CH1520104-01

Fork Cap Wrench

* Designed to remove the fork caps and adjust compression dampening on late-model CRs. and RMs.

* 49mm & 50mm.

CH1520104-05

Fork Cap Wrench

* Designed to remove the fork caps and adjust compression dampening on late-model CRs. and RMs.

* 45mm & 50mm.

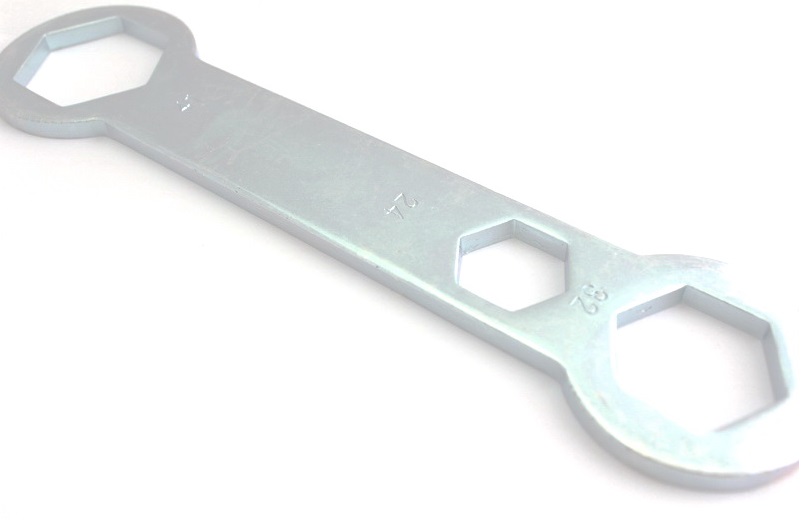

CH1520104-04

Fork Cap Wrench

* It provides three sizes (24, 32 and 41mm) and fits a variety of sport bikes.

CH1520197

Fork Cap Wrench

* This 4 pins spanner wrench is ideal tool to loosen the KTM 48mm WP fork caps without removing the handlebars.

CH152035
Steering/Fork Cap Wrench

It allows access with handlebar in place and 12-point design for easier tool placement.
30-32mm wrench sizes

ITEM NO.: CH152023
Off-Road Tire Tool

Good auxiliary tool for tire irons when replacing the tire of
off-road wheels and also a must for installing tubes.

Provides an easy way to push the tire bead down into the
drop center of the rim on off-road wheels while using tire irons to change tires.

Slip the slot of the tool over the spoke and push bead down on opposite side of tire from tire irons. It will facilitate pulling the tire over the edge of the rim; allow the tire removal and installation easier and faster.

No more fighting to keep bead down while installing off-road tires.
Material：SUS 304

CH152056
Compression Bolt Removal Tool

Ideal tool to remove and install the compression
valve assembly from the fork cap.
It makes operator to properly torque the compression
valve assembly during installation.
17mm hex head
Made from billet 6061 T-6 aluminum.
Applications：2007 and 2008 KTM with WP 4860 MXMA CC forks

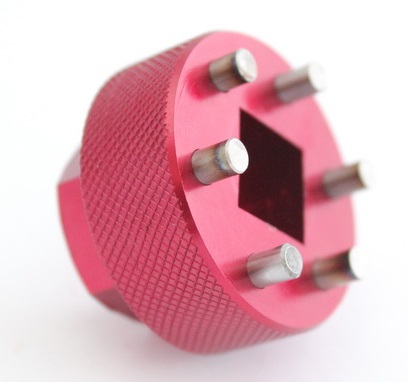

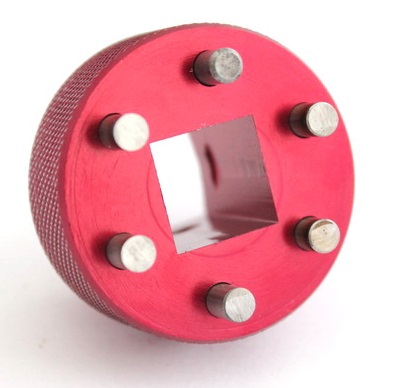

CH1520129

Top Yoke Ring Nut/Steering Stem Nut Tool

<For Mv Agustga>

* It is an essential tool tor removing top yoke ring nut, steering stem nut and steering head when you are greasing the stem bearings.

* It is also helpful tool to periodically make sure it is tight.

* Because it is made from aluminum, it will not damage your bike parts while working.

* Featuring a 3/8" Square drive.

* It fits Mv Agusta Brutale, Mv Agusta Brutale 910, Mv Agusta F4 1000, and Mv Agusta F4 750.

CH152075
Fork Compression Valve Removal Tool

Ideal tool to remove the compression valve from cartridge.
19mm drive hex with 36mm octagon.
Made from 6061-T6 aluminum.
Applications:
Yamaha: YZ 125/250 05-06, YZ 250F/450F 06-08
Honda: CRF250R 2010, CRF450R 2009

CH1520113

KYB Twin-Chamber Compression Tool

* This tool works on the Twin-Chamber KYB forks and is designed to remove the compression body from the cartridge.

CH1520114

Shock Compression Adjuster Removal Tool

* It allows easy removal of the rear shock compression adjuster.

* Note：The punch marks at the threads must be drilled 1 mm deep prior to removal.

CH1520115-01

Shock Compression Adjuster Removal Tool

* It allows easy removal of the rear shock compression adjuster.

* Note：The punch marks at the threads must be drilled 1 mm deep prior to removal.

* Socket size: 24mm (also have 21mm)

CH1520115-02

Shock Compression Adjuster Removal Tool

* It allows easy removal of the rear shock compression adjuster.

* Note：The punch marks at the threads must be drilled 1 mm deep prior to removal.

* Socket size: 21mm

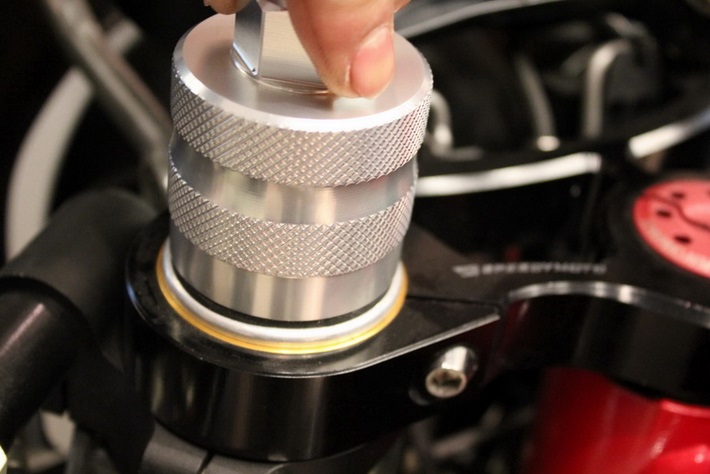

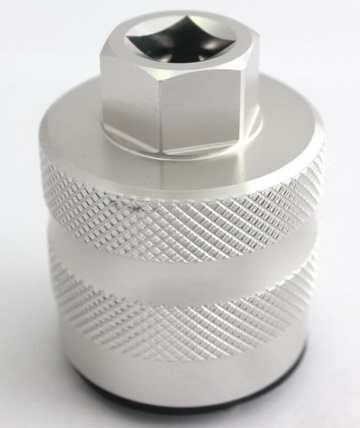

CH1520121

Fork Cap Tool

* Ideal tool to remove and install the fork cap.

* Fits most “OHLINS” suspension models.

* There is a square hole on the backside for a 1/2" drive.

* The rubber cushion design allows you without damaging the fork cap while using.

* Material：7075-T6 aluminum

  Click to enlarge

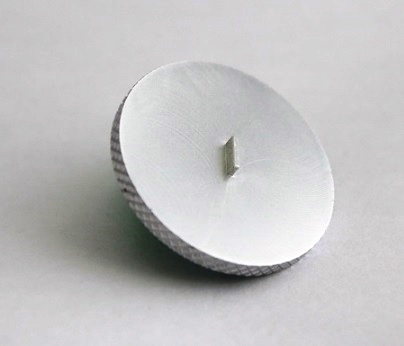

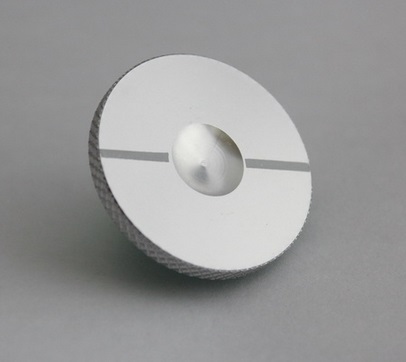

CH1520119

Fork Compression Damping Adjuster Tool

This adjusting tool is flat and has a tip on the bottom so it easily fits between the handlebar and top of the fork tube on almost all setups

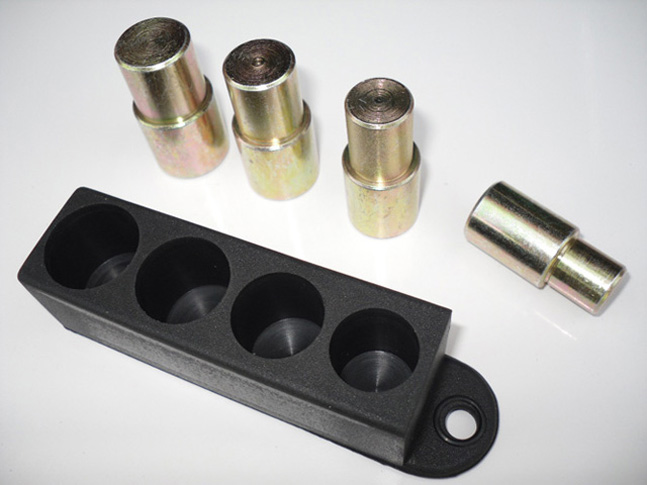

CH152061
　

Shock Bushing Driver Set

<12.5, 14, 16, 18mm>

Click to enlarge picture

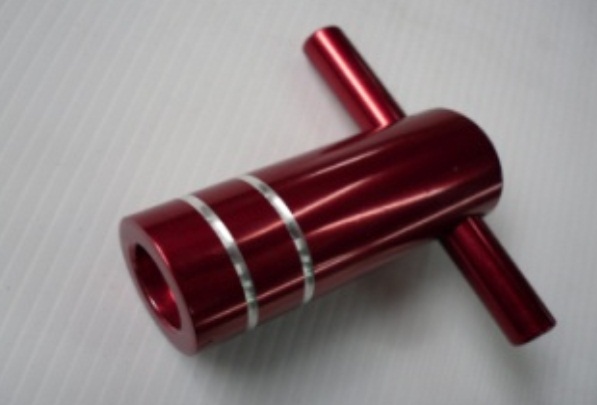

CH152073

Shock Bladder Puller

This puller threads can reach onto the Schrader
valve on the shock reservoir and make the bladder
removal be easier.

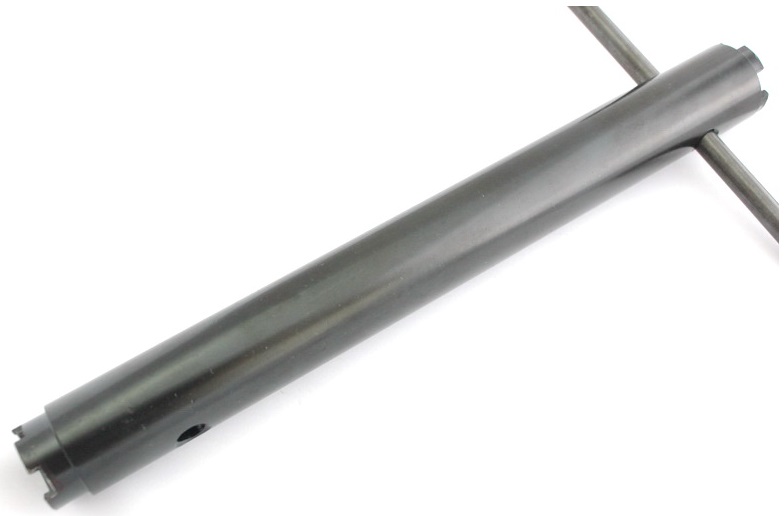

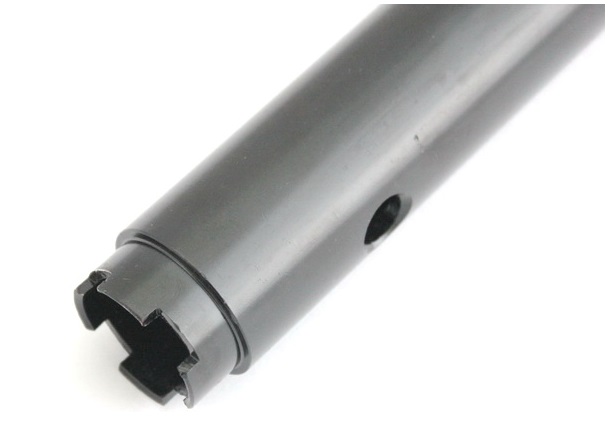

CH152041

Damper Rod Fork Tool

* Ideal and perfect tool to assemble and disassemble of most 41, 43, 46 and 47mm Kayaba and Showa inverted forks.

* Not needed for 91/92 Honda CR models.

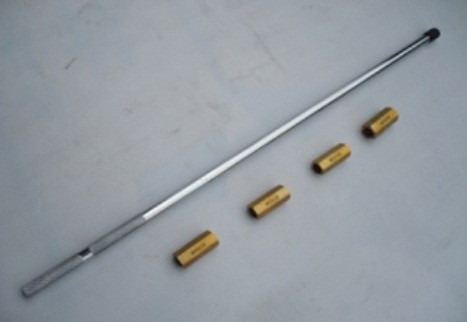

CH152076

Damping Rod Tool

Allows the damping rod to retrieve effortless after
spring installation.
Works on Kayaba, Showa and WP inverted forks.
Tool provides one rod w/ M10x1.0 end and four brass hex
adapters are included M10x1.0, M12x1.0, M12x1.25 and M14x1.0.
Rod includes covered bleed port to prevent oil splatter.

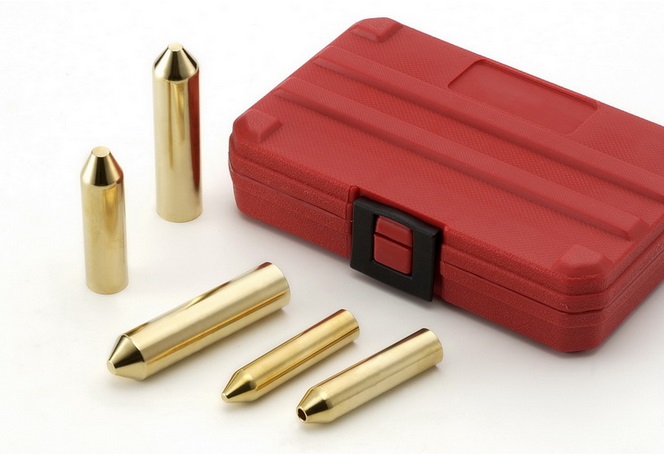

CH1520116

Shock Seal Head Installation Tool Set

* These tools protect the shock shaft seal when installing the seal head onto the shaft.

* They make seal head easy and quick removal and installation of seal assemblies.

* Set provides five sizes：12.5x10mm、14x12mm、16x12mm、18x16mm and 18x12mm.

CH1520118

Shock Preload Adjusting Tool

* It is ideal tool for adjusting preload without damaging the rear shock spring collars.

* The “bent tip” adjusts spring collars in difficult to reach places.

CH1520198

Fork Bleeding Tool Set

* It can easily thread onto the damping rod to facilitate cartridge fork bleeding and prevent the typical mess when changing fork oil.

* Set provides adapters for 10mm x 1.0mm, 12mm x 1.0mm, 12mm x 1.25mm and 14mm x 1.0mm damping rods.
